Foam Source Factory Supplies EVA Foam Lining High-End Stationery Inner Box Non-Slip Shockproof EVA Foam

Features: Environmentally friendly, shockproof and non-slip, beautiful and high-end, strong and durable, non-toxic and odorless
Scope of application: high-end stationery inner box, office supplies lining. Electronic appliance inner box, digital product inner box
Five core technology highlights
1. Dual-module anti-vibration system
38mm thick substrate: honeycomb matrix structure, energy absorption rate increased by 40%
10mm upper cover: inclined pressure-conducting design, effectively disperse local impact force
Passed the 20kg weight 1m drop test (GB/T 4857.5 standard)
2. Quick-adhesive backing glue process
Adopting Japanese Toyobo hot melt adhesive coating, 3 seconds fast adhesion (25℃ environment)
No residual glue after peeling, supports repeated positioning and fitting
3. Precise hole filling technology
CNC numerical control engraving positioning hole, tolerance ±0.15mm
Special-shaped filling block plug-in structure, suitable for screws/data cables/pen tips and other details
4. Three-proof performance upgrade
Moisture-proof: closed cell rate > 92% (ASTM D2856 test)
Anti-slip: surface diamond convex pattern design, tilted 30° without displacement
Anti-static: surface resistance value 10^8-10^10Ω (anti-static treatment process is optional)
Scenario-based solutions
▸ High-end stationery set
Pen/precision instrument: 38mm thick area pre-engraved pen-shaped groove + anti-scratch suede treatment
Stapler/paper cutter: customized tool fixing buckle, opening and closing life> 5000 times
▸ Electronic office equipment
Calculator/scanning pen: 3mm buffer partition layer, adapted to USB interface exposed design
Conference terminal: EMI shielding layer composite process (optional)
▸ Digital product packaging
TWS earphone compartment: magnetic cover structure, support NFC tag embedding
Mobile power supply: heat dissipation holes are precisely aligned to meet UN38.3 transportation certification
Testing and certification
SGS report number: YC-2023XXXX (including 18 hazardous substance tests)
Physical performance test:
▶ Compression permanent deformation rate <8% (70℃×22h)
▶ VOC emission <50μg/m³ (ISO 16000-9 cabin test)
Order service description
1. Customized service
Free 3D structural design (STEP/IGS file delivery)
500 sets of minimum order, 7-12 days delivery cycle
2. Quality assurance
First sample full-size laser scanning test report
Batch goods AQL 2.5 sampling standard
3. Logistics packaging
Anti-indentation independent PE bag packaging
Export-grade corrugated box (edge pressure strength ≥8000N/m)
Material: Environmentally friendly EVA
Density: 38 degrees
Color: Black

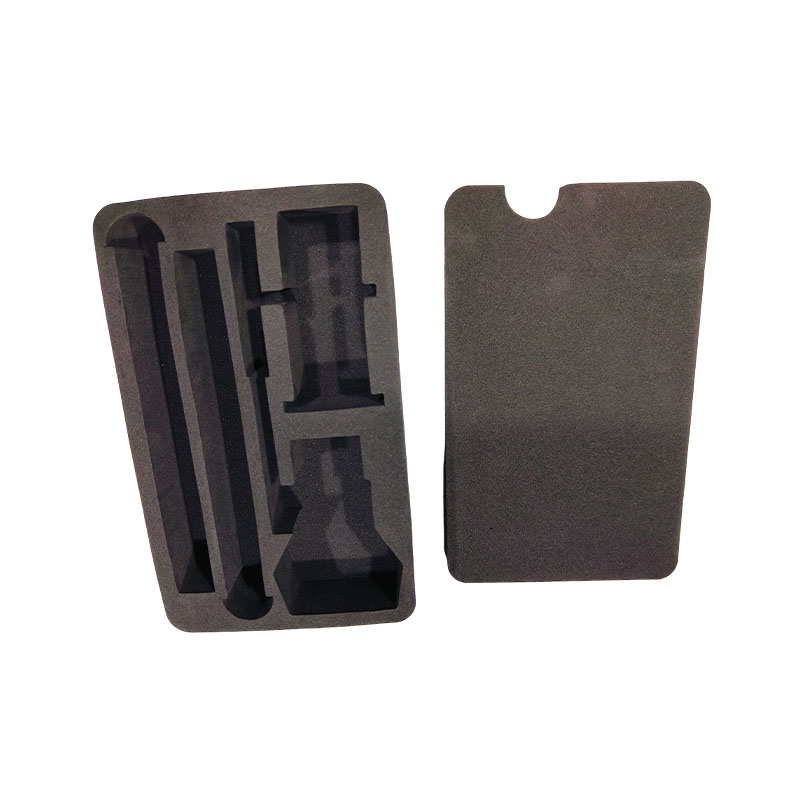

Specification thickness: 185MM*110MM*38MM thickness
Cover: 185MM*110MM*10MM
Production process: Foam material with single-sided adhesive, mold stamping, manual lamination, hole filling
Environmental testing: SGS test report
Core parameters
Attributes
Parameter details
Manufacturer: Dongguan Yonglicheng Packaging Technology Co., Ltd.
Substrate material: Food-grade environmentally friendly EVA (SGS certified, in line with EU EN71-3 toy safety standards)
Composite process: EVA single-sided pre-coated high-viscosity adhesive (viscosity value ≥3.0N/cm², customizable release paper/PE film protective layer)
Density: 38±1° (high-density compression-resistant structure, Shore hardness C grade 58-62)
Lining size: 185mm(L)×110mm(W)×38mm(T) (adapted to the internal volume of a standard pencil case)
Cover size: 185mm(L)×110mm(W)×10mm(T) (embedded closed structure, ±0.3mm precision tolerance)
Color scheme: Pure black matte (supports Pantone color card customization, ΔE≤1.5 color difference control)
Anti-slip coefficient: Surface friction coefficient 0.8-1.2 (in accordance with ASTM D1894 standard)
×
