Dongguan Factory Supplies EVA Foam Kneeling Pad Red And Blue Foam High Elastic Shockproof EVA Foam

Features: Anti-slip. Buffer. Environmentally friendly, shockproof and shock-absorbing, beautiful and high-end, strong and durable, non-toxic and odorless
Scope of application: Mainly used for indoor or outdoor ground, can sit, stand, lie, and jump.
Five core technical advantages

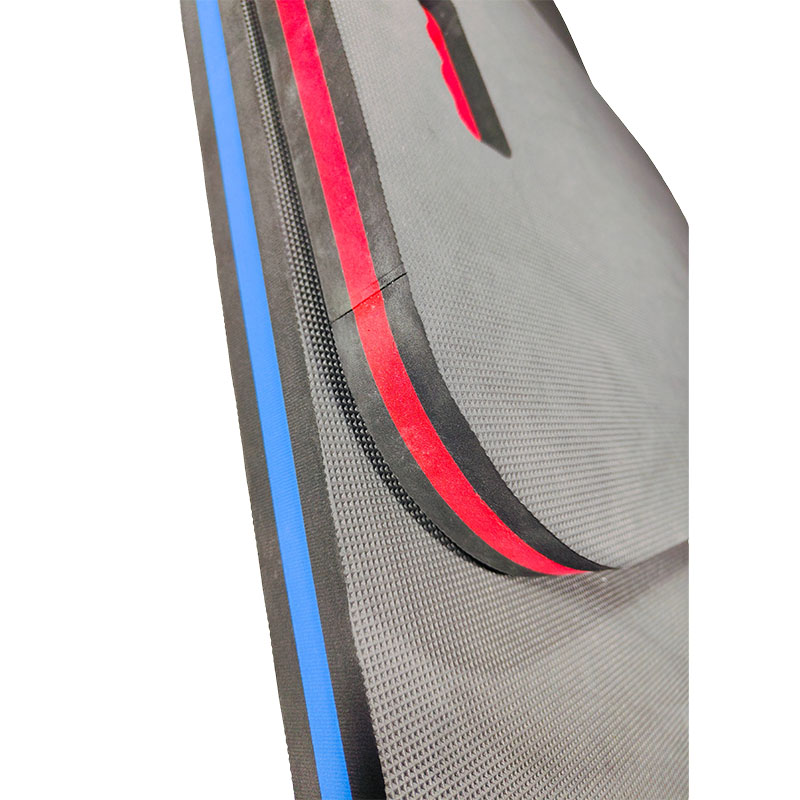

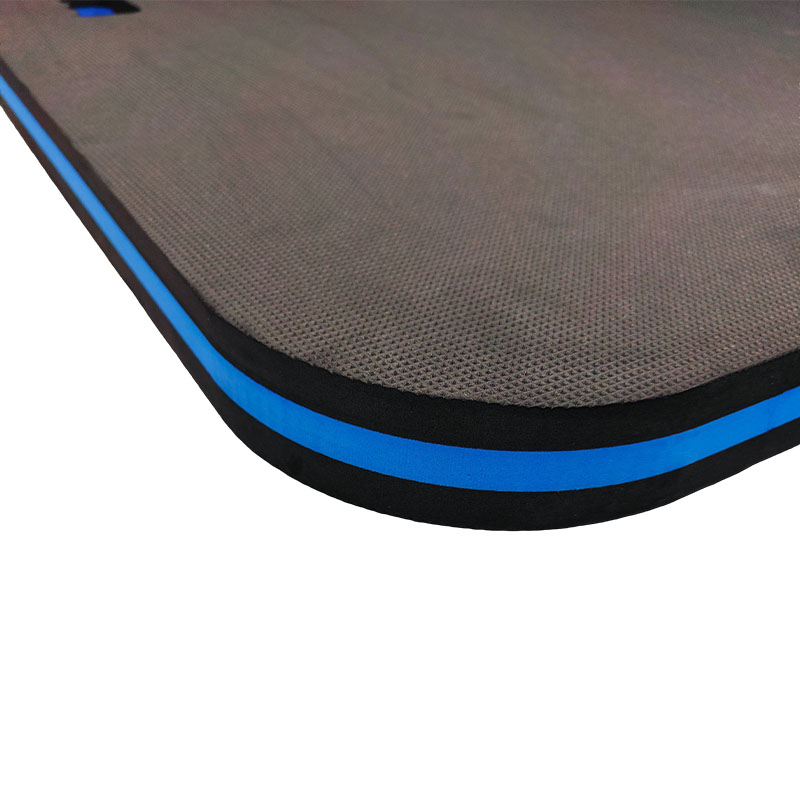

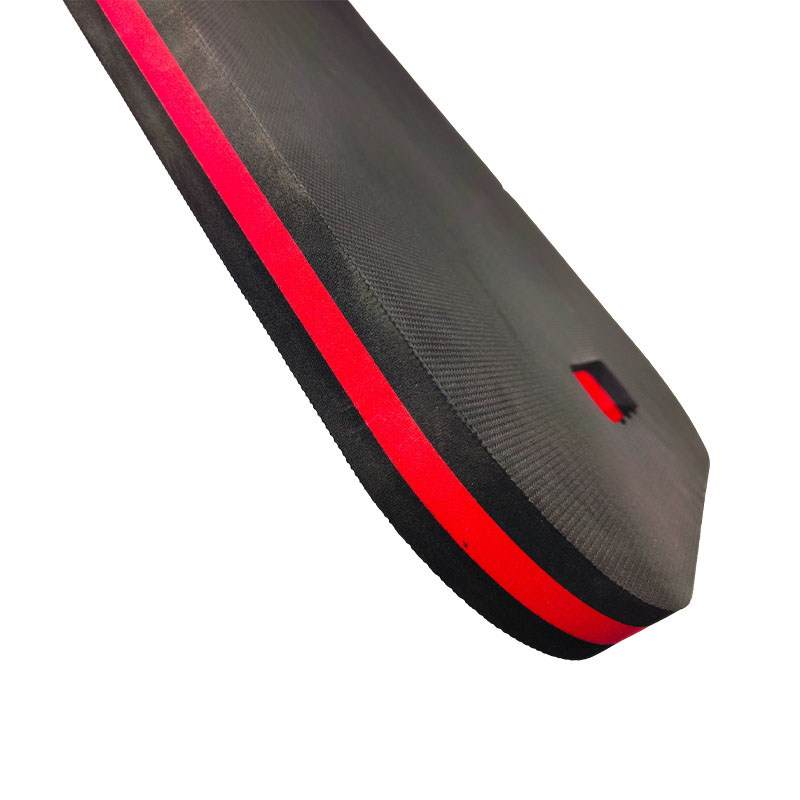

1. Sandwich composite structure
Surface layer: 13mm high-density black EVA (wear resistance ≥ 2000 revolutions)
Middle: 12mm color buffer layer (energy absorption rate 75%)
Bottom layer: 13mm non-slip black EVA (friction coefficient 1.35, in line with DIN 51130 non-slip R11 level)
2. Intelligent cutting system
Adopting German imported vibration knife cutting machine (accuracy ±0.2mm)
Support complex special-shaped cutting (minimum fillet radius R3mm)
45° chamfering of the edge to prevent warping and cracking

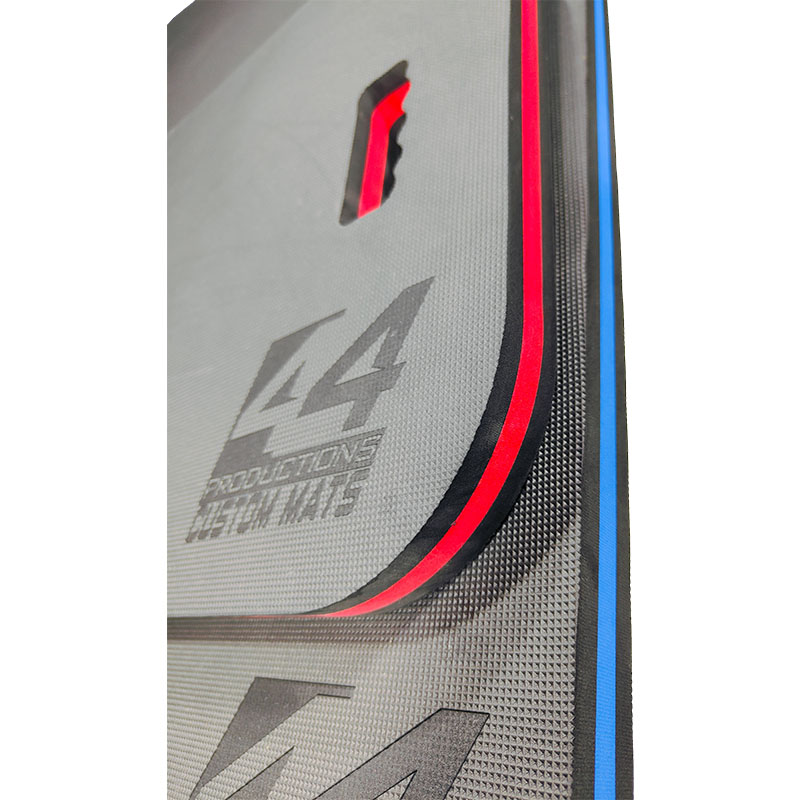

3. Laser engraving process
Engraving depth 0.5-1.2mm adjustable (supports gradient effect)
Strong weather resistance: no cracking and falling off in -40℃~80℃ environment
Support anti-counterfeiting QR code engraving (minimum resolution 0.1mm)
4. All-weather performance
Waterproof performance: IPX7 level (immersion in 1m water depth for 30 minutes without water seepage)
UV-resistant treatment: QUV 2000 hours of testing, color difference change ΔE<2
Flame retardant grade: UL94 HF-1 (self-extinguishing time from fire<2 seconds)
5. Quick cleaning design
Surface hydrophobic treatment (water contact angle>110°)
Support high-pressure water gun cleaning (maximum pressure 80bar)
Optional antibacterial coating (compliant with ISO 22196 standard, antibacterial rate>99%)
Scenario-based solutions
▸ Fitness training venues
HIIT training area: 38mm thick buffer layer reduces joint impact (impact force attenuation rate 65%)
Yoga Pilates: Surface temperature follows human body adjustment (touch temperature rises 3-5℃ in winter)
▸ Children's activity center
Safety protection: passed EN 1177 drop test (HIC<1000)
Interesting design: supports color pattern partition customization
▸ Outdoor activity venues
Anti-slip treatment: passed ASTM F1677 anti-slip test (applicable to both dry and wet environments)
Anti-aging: QUV 3000 hours of testing (equivalent to 5 years of outdoor use)
▸ Industrial production line
Anti-static version: surface resistance 10^6-10^9Ω (compliant with ESD S20.20 standard)
Oil-resistant treatment: IP6X protection level, supports chemical cleaning
Testing and certification
SGS test report number: YC-MAT-2024XXX
▶ Formaldehyde content <0.01mg/m³ (much better than GB/T 18883 standard)
▶ TVOC release rate 0.02mg/(m²·h) (EU ECMA-328 standard A+ grade)
Physical performance certification:
▶ Passed EN 14904 sports floor certification
▶ Obtained GREENGUARD Gold certification
Service guarantee system
1. Customized service
Free shape design and placement design
Design and proofing according to drawings or samples
2. Warranty Commitment
3-year warranty for commercial premises (free replacement for non-human damage)
Annual rebound rate testing service provided
3. Logistics Solution
Roll transport (maximum length of a single roll is 50m, saving 80% of freight)
UV-proof PE wrapping film
Material: Environmentally friendly EVA
Density: 38 degrees
Color: black + red black + blue
LOGO: Laser engraved LOGO
Specification thickness: 1040MM*740MM*38MM thickness
740MM*450MM*38MM thickness
Production process: Two black foams sandwiched with a colored foam, bonded together, cut with a vibration knife, laser logo
Environmental testing: SGS test report
Core parameters
Attributes
Technical specifications
Manufacturer: Dongguan Yonglicheng Packaging Products Co., Ltd.
Base material: Food-grade environmentally friendly EVA (certified by SGS, FDA 21 CFR 177.2600 for food contact materials)
Structural design: Sandwich composite structure (2 layers of black EVA + 1 layer of colored EVA, interlayer hot melt adhesive bonding strength ≥ 15N/cm²)
Density: 38±1° (Shore hardness C grade 55-60, rebound rate ≥ 85%)

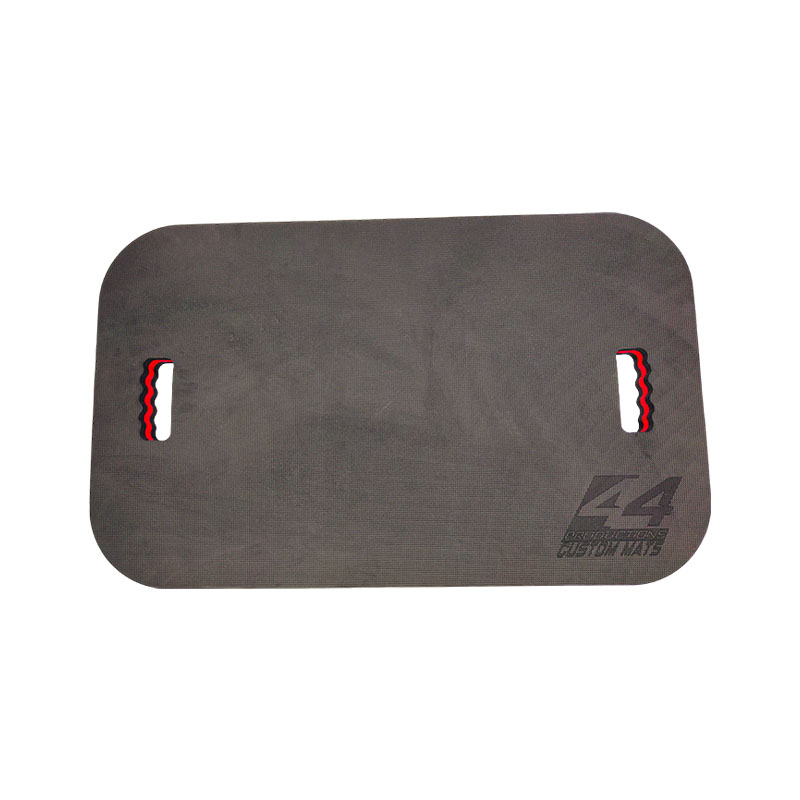

Standard size: Large: 1040mm×740mm×38mm / Small size: 740mm×450mm×38mm (customized size supported)
Color scheme: Standard color: black-red/black-blue (supports Pantone color card customization, color difference ΔE≤1.2)
LOGO process: laser engraving (depth 0.5-1.2mm adjustable, supports QR code/pattern/text)
Maximum load: static load 300kg/㎡, dynamic impact load 200kg (passed 1.5m height drop test)
×
